15.4 Optimizing and searching classical demosaickers⧉

The demosaickers of Chapter 15.1, Basic traditional demosaicking and Chapter 15.2, Advanced traditional demosaicking were designed by hand, and so were their numbers: the quarter and half weights of Hamilton–Adams, the gains of Malvar–He–Cutler, the threshold of VNG, the window and regularization of a guided filter. Between that and a fully learned network (Chapter 15.6, Learned demosaicking) lies a middle ground that this chapter is about. Keep the structure of a classical method, which is small, fast and understandable, and let data decide either its parameters, by gradient descent, or its structure itself, by search. The result can still run on a camera's image signal processor, which is where hand-designed methods still dominate, and it can be tuned to a particular sensor, noise level or cost budget in a way no hand-tuning would.

15.4.1 Fitting a classical demosaicker by gradient descent⧉

A classical demosaicker is a short program made of linear filters, a few nonlinear decisions and some arithmetic, and most of its constants are continuous. If the program is differentiable with respect to those constants, they can be fitted like the weights of a network: take full-color images, mosaic them, run the demosaicker, compare its output with the originals, and descend the gradient of the error (Chapter 15.11, Synthetic data, unprocessing, and raw reconstruction discusses where such pairs come from and what they cost in realism).

Two things stand in the way, and both have standard answers.

Hard decisions. A direction test, "interpolate horizontally if $d_H<d_V$", has no useful derivative: an infinitesimal change of the parameters either leaves the choice alone or flips it. The usual fix is to replace the hard choice by a soft one during training, blending the two directional estimates with weights that depend smoothly on the two costs, for example $w_H = e^{-d_H/\tau}/(e^{-d_H/\tau}+e^{-d_V/\tau})$. The temperature $\tau$ controls how hard the blend is; lowering it during training and hardening the choice at deployment recovers a program that makes the same decisions as the original, with fitted constants.

Computing the derivative efficiently. Automatic differentiation in a deep-learning framework works but is slow for pipelines written as many small stencils. Gradient Halide Li et al. 2018 generates the derivative of a Halide image-processing pipeline automatically and schedules it like any other pipeline, so the same algorithm description is trained efficiently and then compiled for the device (Gradient Halide: differentiating the pipeline).

Algorithm 15.4.1
# Fit the constants of a soft Hamilton-Adams green step on training pairs
params = {"w_corr": 0.25, "tau": 1.0}                    # start from the published values
for step in range(num_steps):
    mosaic, target = sample_training_pair()               # full-color image and its mosaic
    dH = abs(Gl - Gr) + abs(2*C - Cl2 - Cr2)              # gradients from the mosaic
    dV = abs(Gu - Gd) + abs(2*C - Cu2 - Cd2)
    gH = (Gl + Gr)/2 + params["w_corr"] * (2*C - Cl2 - Cr2)
    gV = (Gu + Gd)/2 + params["w_corr"] * (2*C - Cu2 - Cd2)
    wH = softmax([-dH, -dV] / params["tau"])[0]           # soft choice during training
    G  = wH * gH + (1 - wH) * gV
    loss = mean((G - target_green)**2)
    params -= lr * gradient(loss, params)
    params["tau"] *= anneal                               # harden the choice over time
# deploy with the hard test and the fitted w_corr

Figure 15.4.1 runs this loop on the correction weight.

fig-demosaick-fit-soft-choice

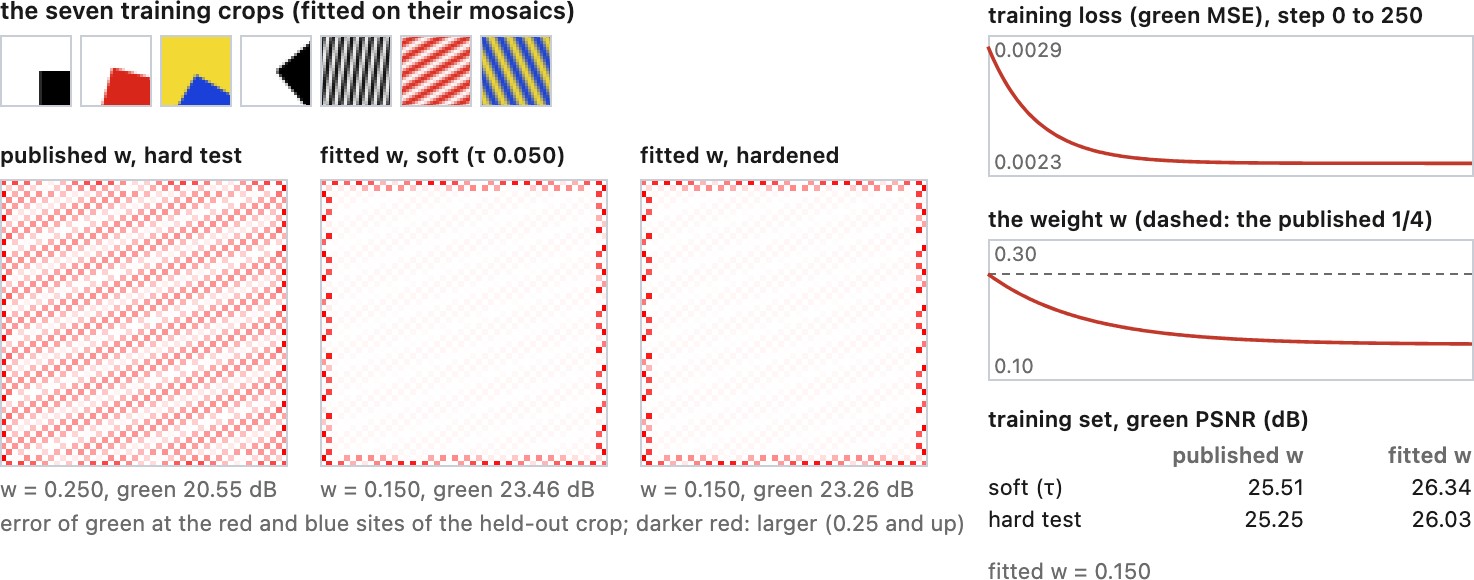

Figure 15.4.1. Fitting one constant of Hamilton–Adams by gradient descent. The green step's direction choice is softened with a temperature $\tau$, and the weight $w$ of its curvature correction, published as 1/4, is fitted on seven small mosaicked crops (corners and gratings in three pairs of colors) by 250 gradient steps; the curves show the loss falling and $w$ settling near 0.15. The three error maps are for a crop not used in fitting: the published weight with the hard test, the fitted weight with the soft blend, and the fitted weight with the choice hardened again. On the gray grating green improves from 20.6 to 23.3 dB, and the fitted weight keeps its advantage once the choice is hard, on the training crops (25.3 to 26.0 dB) and on each held-out crop. The maze stripes are held out on purpose: with them in the training set the fit went to 0.07 and did worse than 1/4 elsewhere, the section's point that the data decides the constants. Interactive: set the temperature, choose the held-out crop, press train to run the fit and "back to w = 1/4" to start again.

The same idea predates automatic differentiation wherever the parameters enter linearly. Malvar, He and Cutler derived the gains of their filters from a Wiener-filter fit to a standard set of test images Malvar et al. 2004, and Leung, Jeon and Dubois designed the filters of frequency-domain demosaicking by least squares (Chapter 15.2, Advanced traditional demosaicking, Leung, Jeon & Dubois 2011 (least-squares luma-chroma demultiplexing)). The L3 approach, local, linear and learned, of Jiang and colleagues Jiang et al. 2017 (L3) classifies each pixel by a few local features, such as its color channel, its brightness and how much texture surrounds it, and applies a linear filter learned by least squares for that class: a table of small classical filters chosen by a classical test, with every filter fitted to data. RAISR does the same for upsampling (Chapter 14.4, Single-image super-resolution: classical methods).

On one photograph at ISO 3200 (Figure 15.4.2), 32 classes improve on one filter per color position by a fraction of a decibel, and the learned filters differ where they should: in dark, flat regions, where noise dominates, the filter leans less on the pixel itself and averages more.

fig-l3-classes

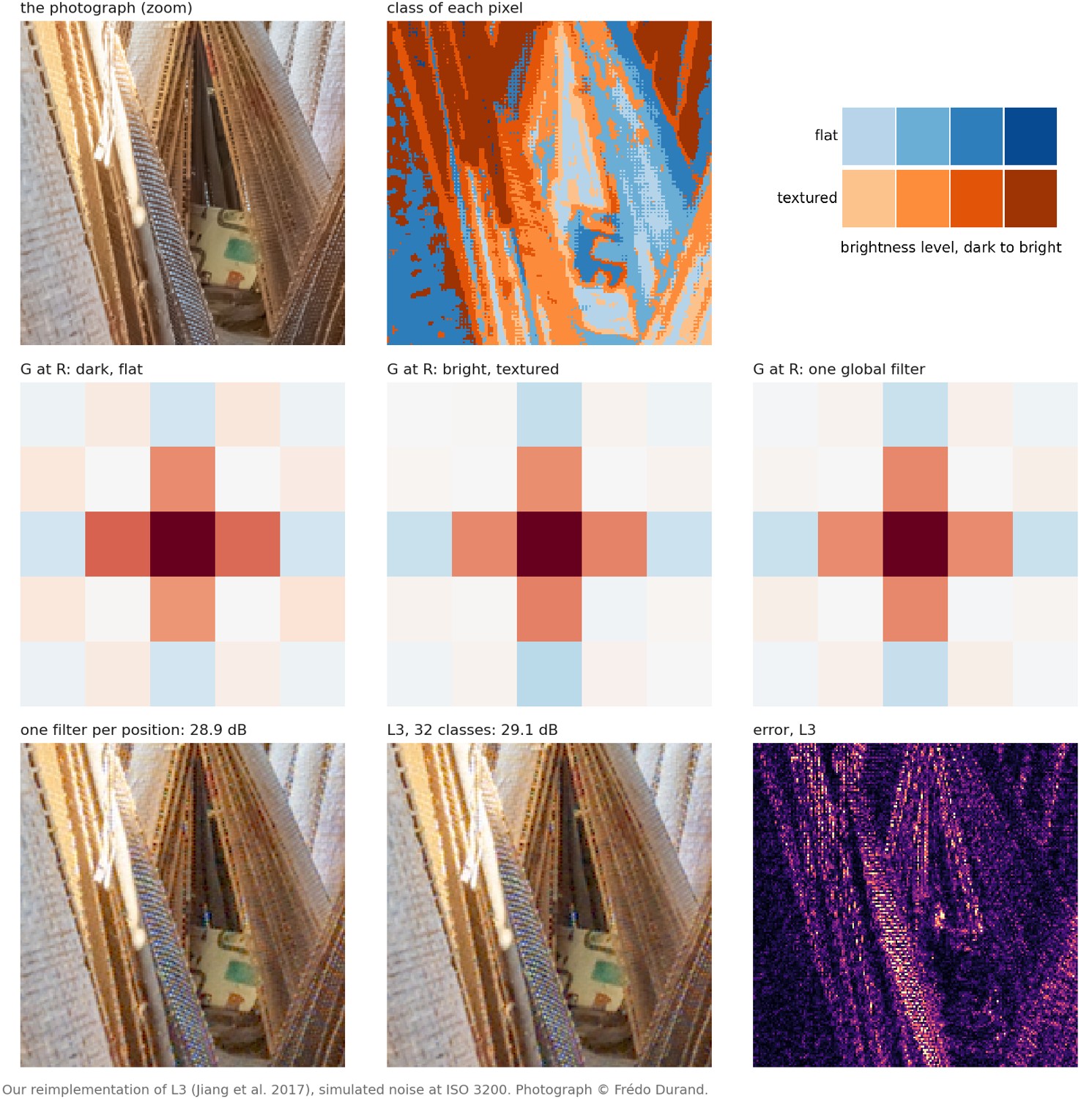

Figure 15.4.2. L3 on one photograph. Every pixel is classified by its color-filter position, the brightness of its 5 × 5 neighborhood (four levels) and whether that neighborhood is textured or flat, 32 classes in all, and each class has its own linear filter from the 25 mosaic values to the pixel's red, green and blue, fitted by least squares. The class map shows brightness and texture over an enlarged region. Three of the fitted filters for green at a red site, dark and flat, bright and textured, and the single filter fitted to all red sites, differ mostly in how much weight the center pixel gets: 0.35 in dark flat regions, 0.47 in bright textured ones. At ISO 3200 L3 scores 29.1 dB against 28.9 dB for one filter per color position. Our reimplementation from the paper's description, fitted on crops of other photographs with simulated raw noise.

A camera's own image signal processor is the harder case, because its code is usually not available and not differentiable. Its parameters, dozens of them for demosaicking, denoising, sharpening and color, are still tuned by hand for each new sensor. Tseng and colleagues Tseng et al. 2019 (differentiable proxies) train a neural network to imitate the processor, a differentiable proxy, and optimize the parameters through the proxy's gradients; Mosleh and colleagues Mosleh et al. 2020 (hardware in the loop) instead optimize with the real hardware in the loop, using a search that needs only measured outputs. Both tune the classical pipeline's knobs rather than replacing it (Figure 15.4.3).

fig-isp-tuning-loops
Figure 15.4.3. Two ways to tune an image signal processor whose code is closed. Left, a network is first trained to imitate the processor, given the same raw images and parameters; the parameters are then fitted by gradient descent with the gradients passing through that proxy (Tseng and colleagues). Right, a gradient-free optimizer proposes parameters, the real processor renders the raw captures, and only the measured loss comes back (Mosleh and colleagues). Schematic.

Fitting keeps what makes a classical method attractive: the program is as fast as before, its behavior can be read, and its failures are those of its structure. It also keeps that structure's limits. No choice of constants lets a two-direction test handle diagonal texture, and constants fitted to one sensor or noise level are no longer the best for another, so the evaluation data must match where the program will run.

Figure 15.4.4 shows the gain and its limit on Malvar, He and Cutler's three gains. Fitted at ISO 100, they come out smaller than the published ones and score about 0.9 dB better on a photograph that was not used for fitting. At ISO 25600 those gains still beat the published ones, but they are no longer the best: gains fitted at that ISO are about half as large, because each correction term is a Laplacian of a noisy channel and amplifies the noise.

fig-fitted-vs-published-constants

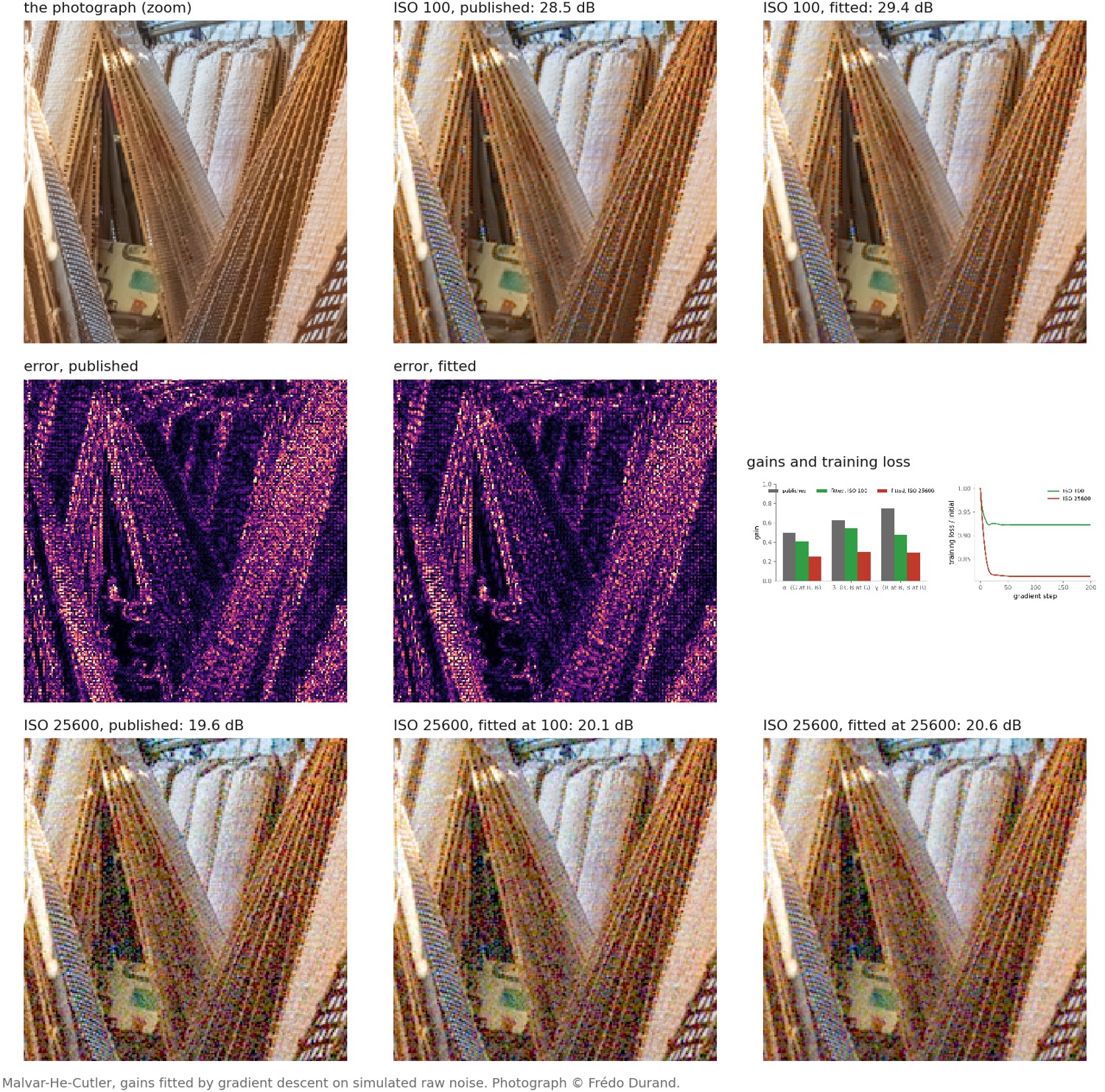

Figure 15.4.4. Malvar–He–Cutler with its published gains (1/2, 5/8, 3/4) and with gains fitted by gradient descent on crops of other photographs, mosaicked and given simulated raw noise. On a photograph of woven drying racks at ISO 100 the gains fitted at that ISO (0.41, 0.55, 0.47) score 29.4 dB against 28.5 dB for the published ones, with smaller errors on the fine mesh. The bar chart compares the three sets of gains and the curves show the training loss falling. At ISO 25600 the published gains score 19.6 dB, the ISO 100 gains 20.1 dB and gains fitted at ISO 25600 (0.25, 0.30, 0.29) 20.6 dB: what does not transfer is the optimum. The noise is a model, not a measured camera; with it the gap opens only above ISO 6400.

15.4.2 Searching for the program itself⧉

Gradient descent can tune the constants of a structure but cannot change the structure: there is no derivative of "add a second correction term" or "interpolate this difference instead of that one". Search can. Ma and colleagues' Searching for Fast Demosaicking Algorithms Ma et al. 2022 searches over demosaicking programs built from operations suited to the task, such as packing the mosaic's phases, small local linear combinations and separate reconstruction of green and of chroma, alongside conventional learned operations. A genetic search mutates the structure of candidate programs, gradient descent fits the constants of each candidate, and each is scored on two objectives, reconstruction quality and computational cost. The output is not one program but a family, one per budget, along a speed–quality Pareto front (Figure 29.8.2). The paper reports searched programs that trade cost for quality better than both classical methods and shrunk networks over the range it explores; the same framework produced programs for X-Trans mosaics and for joint demosaicking and super-resolution.

fig-program-search-loop
Figure 29.8.1 (reproduced). The search loop. Propose a candidate program, its structure and its constants; measure its quality on training mosaics and its cost; keep the candidates no other beats on both, and mutate them again. Structure is searched, constants are fitted by gradient. Schematic.

Drawn the same way, one of the programs the search found looks like a relative of Hamilton–Adams (Figure 15.4.5).

fig-searched-demosaick-program
Figure 15.4.5. A searched program beside a classical one. Left, the green step of Hamilton–Adams: a horizontal and a vertical estimate, two directional costs, and a hard choice of the direction with the smaller cost, applied by multiplying and adding. Right, a green-prediction program found by Ma and colleagues' search, 256 operations per pixel: two convolution branches computed from the mosaic, and a third branch that works at reduced resolution and ends in a softmax, whose weights select between the two after upsampling; multiply, sum over groups, add. The structure is the same, two candidate estimates and a weighting between them, with the weighting learned and soft instead of a fixed test. Blue marks learned operations, gray fixed ones and red the weighting; "g" is a convolution's group count. Right panel redrawn from Ma et al. 2022, Fig. 4, program 2156.
Algorithm 15.4.2
# program search in outline (see the code-speed part for the full protocol)
population = [classical_seed_programs()]                  # e.g. bilinear, Hamilton-Adams-like
for generation in range(G):
    children = [mutate(p) for p in select(population)]    # add, remove or rewire operations
    for p in children:
        fit_constants_by_gradient(p, training_pairs)       # the previous section, inside the search
        p.quality, p.cost = evaluate(p), operation_count(p)
    population = pareto_front(population + children)       # keep the non-dominated programs
compile_and_time(population)                               # measure on the real device
fig-speed-quality-pareto
Figure 29.8.2 (reproduced). The speed–quality Pareto front. Hand-designed demosaickers are cheap, a large network is accurate and expensive, and the searched family traces a curve below and to the left of both, one program per budget. Schematic, after Ma et al. 2022; the positions are not the paper's numbers.

Searching programs has a history outside demosaicking. Sitthi-amorn and colleagues used genetic programming to simplify shaders, trading rendering error against speed in the same way Sitthi-amorn et al. 2011 (genetic shader simplification). And search can target the implementation rather than the algorithm: Halide's autoschedulers search how a fixed algorithm is executed, not what it computes. The two compose, and Chapter 29.8, Automatic search for fast methods treats both, with the evaluation protocol that keeps a search honest: separate data for fitting, for choosing among candidates and for the final test, and timing on the device rather than trusting an operation count.

What search gives the demosaicking problem is a way to reach the region the introduction to this part described, programs small enough for a camera's processor that are nonetheless shaped by data. What it does not give is a guarantee: the front is the best among the programs explored, in the chosen space of operations, for the chosen data and cost model.
